TYM T1003, 100hp Cabin

$41,000 inc gst

Fabric:

Sumbrella

Jean

Sumbrella

Thread

Color:

Select an option

Yellow

Blue

Red

Do you have questions about this product? Our experts are here to help!

Frequently Asked Questions

Description

TYM T1003, a 100-horsepower beast of a machine built to tackle your toughest agricultural tasks.

Whether you're a seasoned farmer or just starting out, the T1003 is packed with the features and muscle you need to get the job done right. Let's delve into what makes this tractor the king of the field:

Unleash Unmatched Power:

Perkins 4-cylinder diesel engine: This industry-renowned engine pumps out 99.5 gross horsepower, providing the grunt you need for plowing, mowing, hauling, and more.

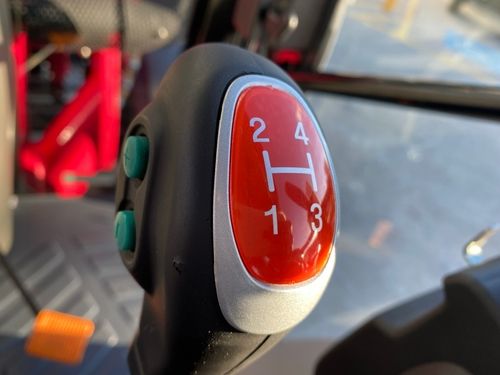

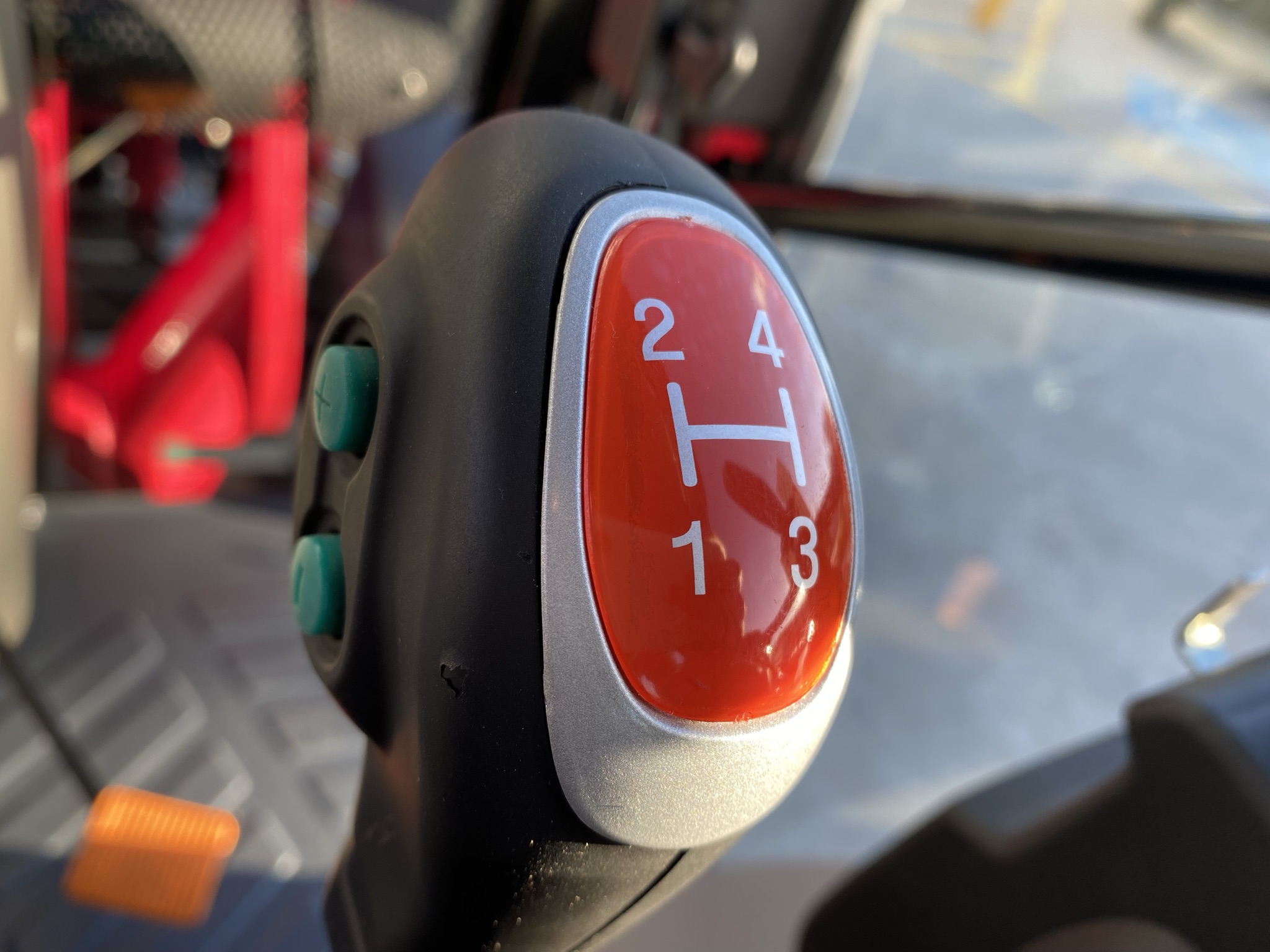

32-speed transmission: With four ranges (high, medium, low, and creeper) and four synchronized gears in each, you'll always have the perfect gear for any terrain or task.
Power shuttle and shift: Change direction effortlessly and without clutching, saving you time and hassle.

Built for Comfort and Control:

Air-conditioned cabin: Keep cool and comfortable even on the hottest days.
Ergonomic controls: Everything is intuitively placed for effortless operation, reducing fatigue and maximizing productivity.
Spacious and comfortable: The T1003's roomy cabin gives you ample space to move around freely, even with a long day's work ahead.

Versatility Meets Efficiency:

3-point hitch with 3110kg lifting capacity: Attach a wide range of implements, from mowers and trailers to plows and cultivators.
Front-end loader option: Boost your versatility even further with a powerful front-end loader for lifting, moving, and loading tasks.
Fuel efficiency: The T1003 is designed to be kind on your wallet, with a fuel-efficient engine and smart features that optimize performance.

Invest in Your Future:

The TYM T1003 is more than just a tractor; it's an investment in your farm's future. With its unbeatable combination of power, comfort, versatility, and efficiency, the T1003 will help you:

Increase productivity: Get more done in less time with the T1003's raw power and advanced features.
Reduce operating costs: Save money on fuel and maintenance thanks to the T1003's efficiency and reliability.
Improve your quality of life: Work in comfort and style with the T1003's spacious cabin and user-friendly controls.

Ready to take your farm to the next level? Contact Tannertrack your local TYM dealer today for a test drive and experience the T1003 difference for yourself.

‍

Specifications

Engine

Powered by 99.5hp Perkins 4 cylinder Diesel engine
Fuel efficient, reliable. powerful and rugged engine
4400cc engine for high performance in heavy duty applications
Dual dry element air cleaner for Australia's dusty conditions

‍

Powered by 99.5hp Perkins 4 cylinder Diesel engine
Fuel efficient, reliable. powerful and rugged engine
4400cc engine for high performance in heavy duty applications
Dual dry element air cleaner for Australia's dusty conditions

‍

Driveline

The tractor weight of 3685kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

32 forward / 32 reverse manual powershuttle allows you to shift forward and reverse without using a clutch
Powershuttle allows you to shift forward and reverse without using a clutch
4 Ranges with range lever located to operator's right
0-40km/h maximum speed

The heavy duty front axle performs in tough working conditions and handles loads with ease

Rear axle with diff-lock for difficult traction situations

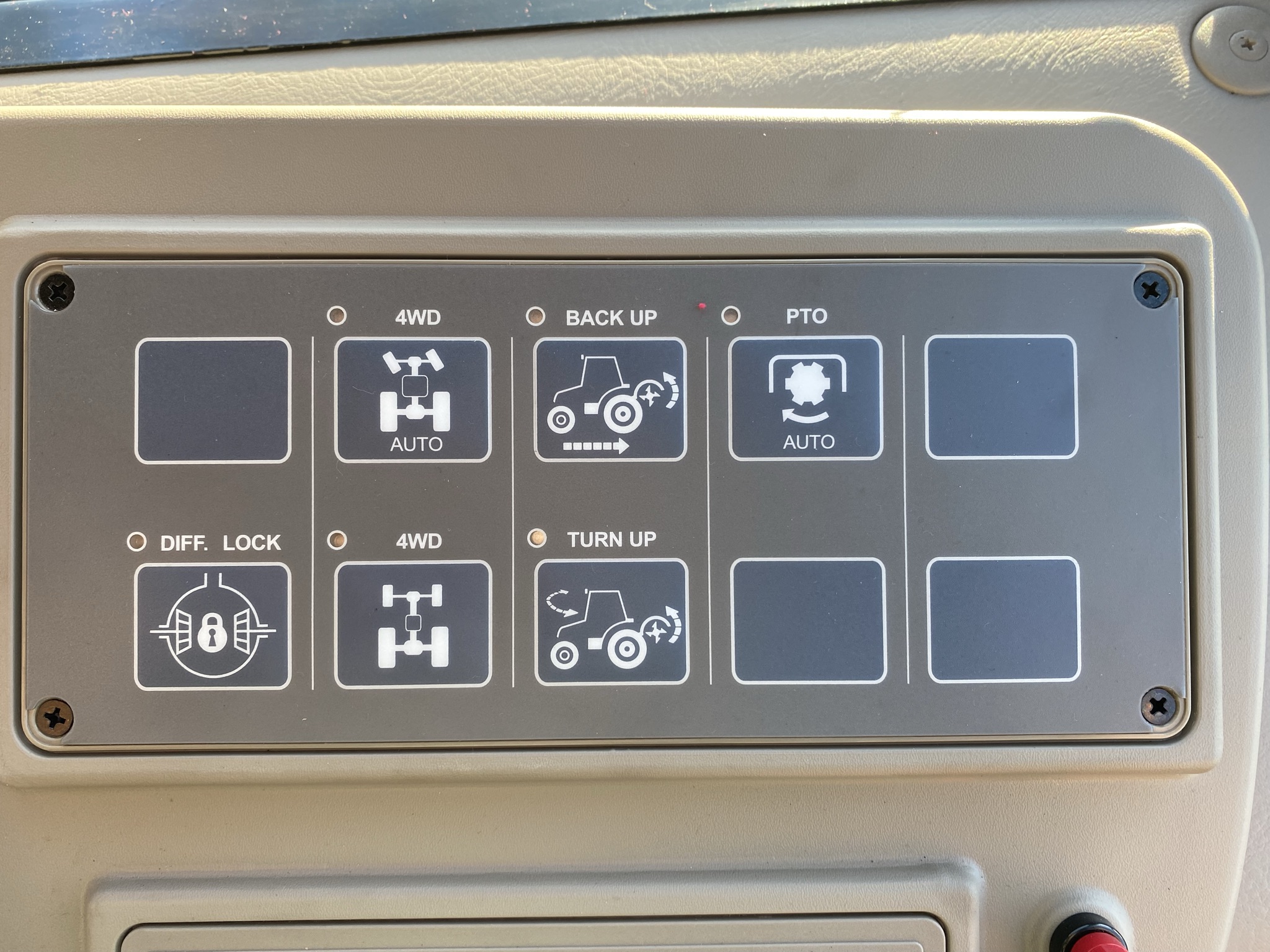

4WD and the diff-lock provides better traction, control and performance
4WD mode is controlled by a lever on the left hand side of the operator

Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

‍

Hhydraulics - PTO - Linkage

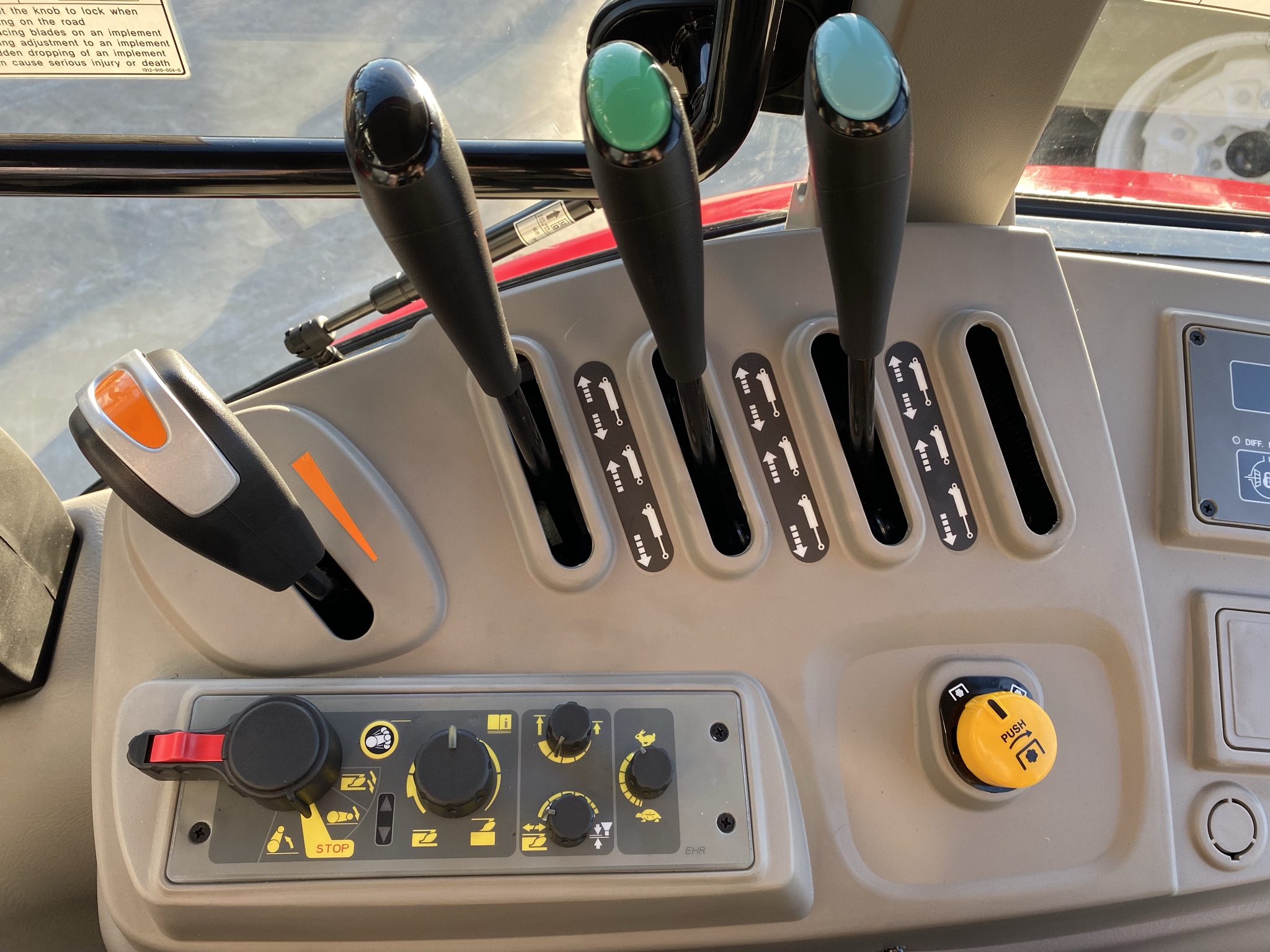

Control for the linkage and hydraulic remotes are on the right-hand side with Bosch electronic linkage controls
Adjustable linkage lift speed
Soft ride transport mode on linkage

3-point linkage with quick attach lower link arms
Linkage arms with simple pin adjustable sway position
3-point linkage with 3110kg lifting capacity gives the tractor great versatility and range of applications
Adjustable lower link stabiliser arms

External button for ease of operating 3 point hitch out of cab

3 sets of double-acting hydraulic remotes
The PTO driveline is a simple and direct design for high efficiency and power
The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation

Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage

‍

Wheels

Adjustable front and rear wheels to vary or widen track width for steep conditions to improve stability

‍

Controls

Wide door entry for easy access
Uncluttered flat floor without trip hazards
Rubber floor mat reduces noise and provides an easy to maintain surface
Plenty of leg room

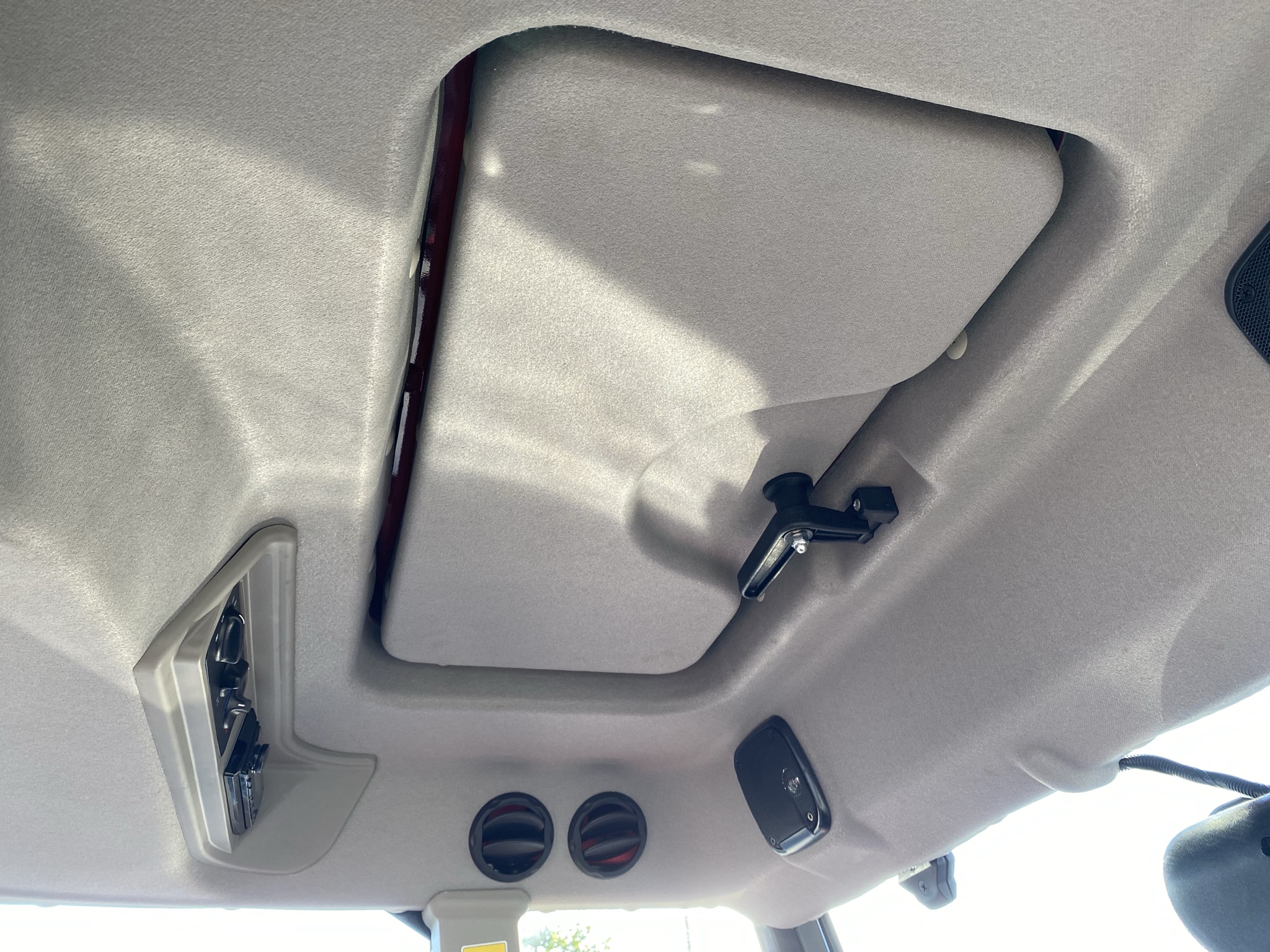

Sunroof

Ergonomic design with easy to reach controls
Easy to read instrument panel

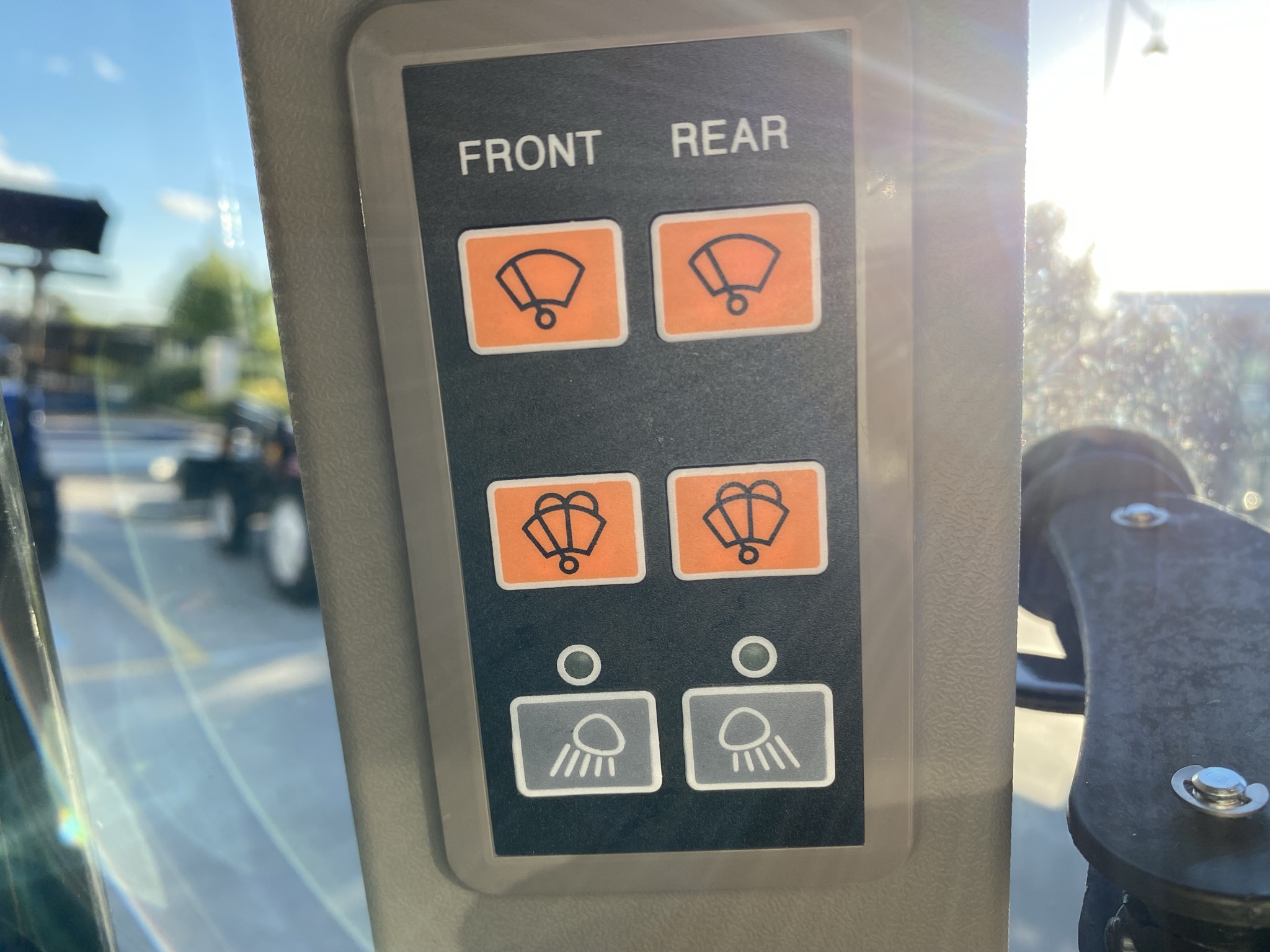

Combination switch controls lights and indicators
Digital forward speed display

Adjustable air suspension seat with arm and headrest for comfort

‍

Front end Loader

Fully integrated joystick for control of front end loader with electric button for third function operation (when loader is fitted)

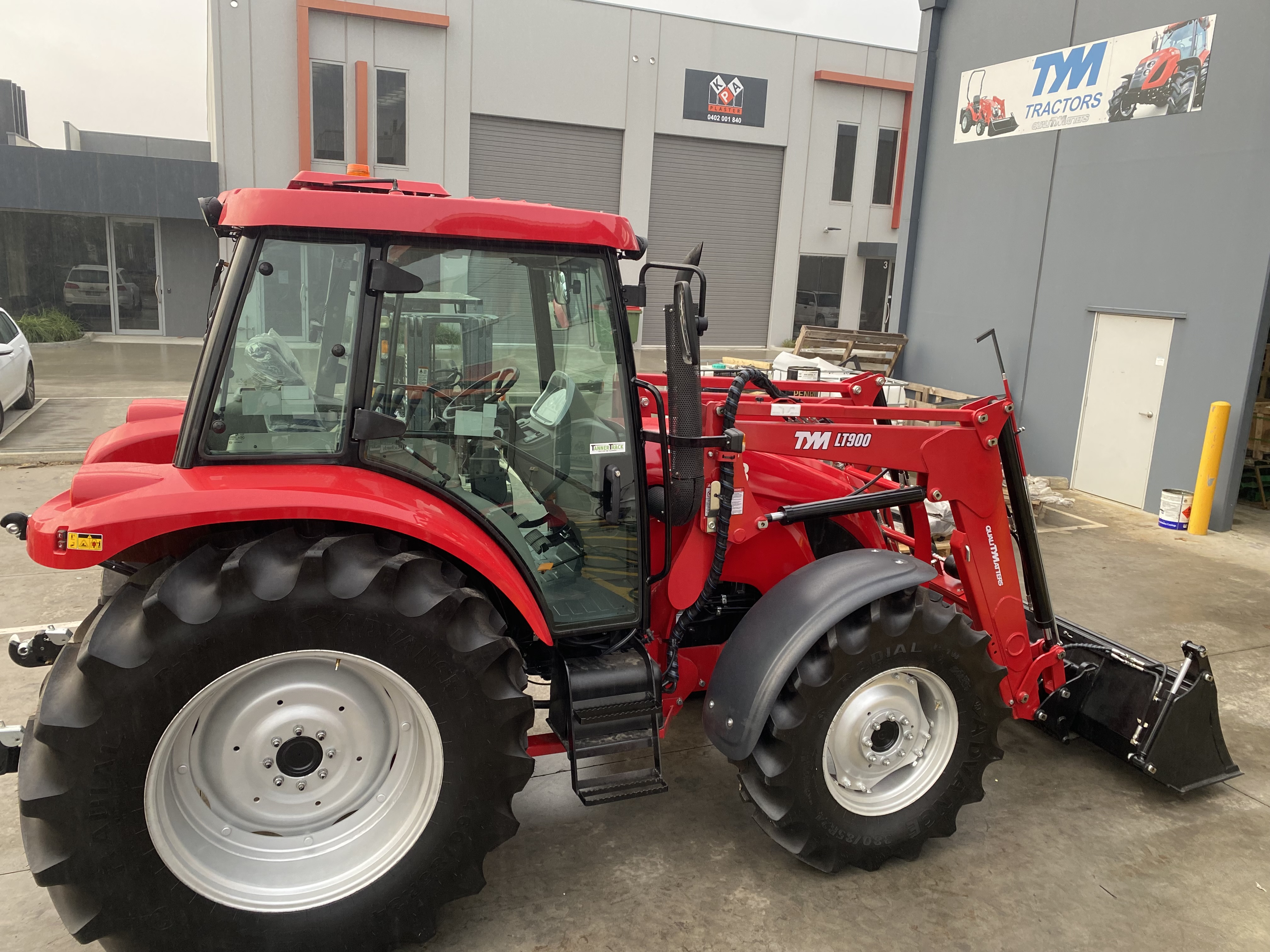

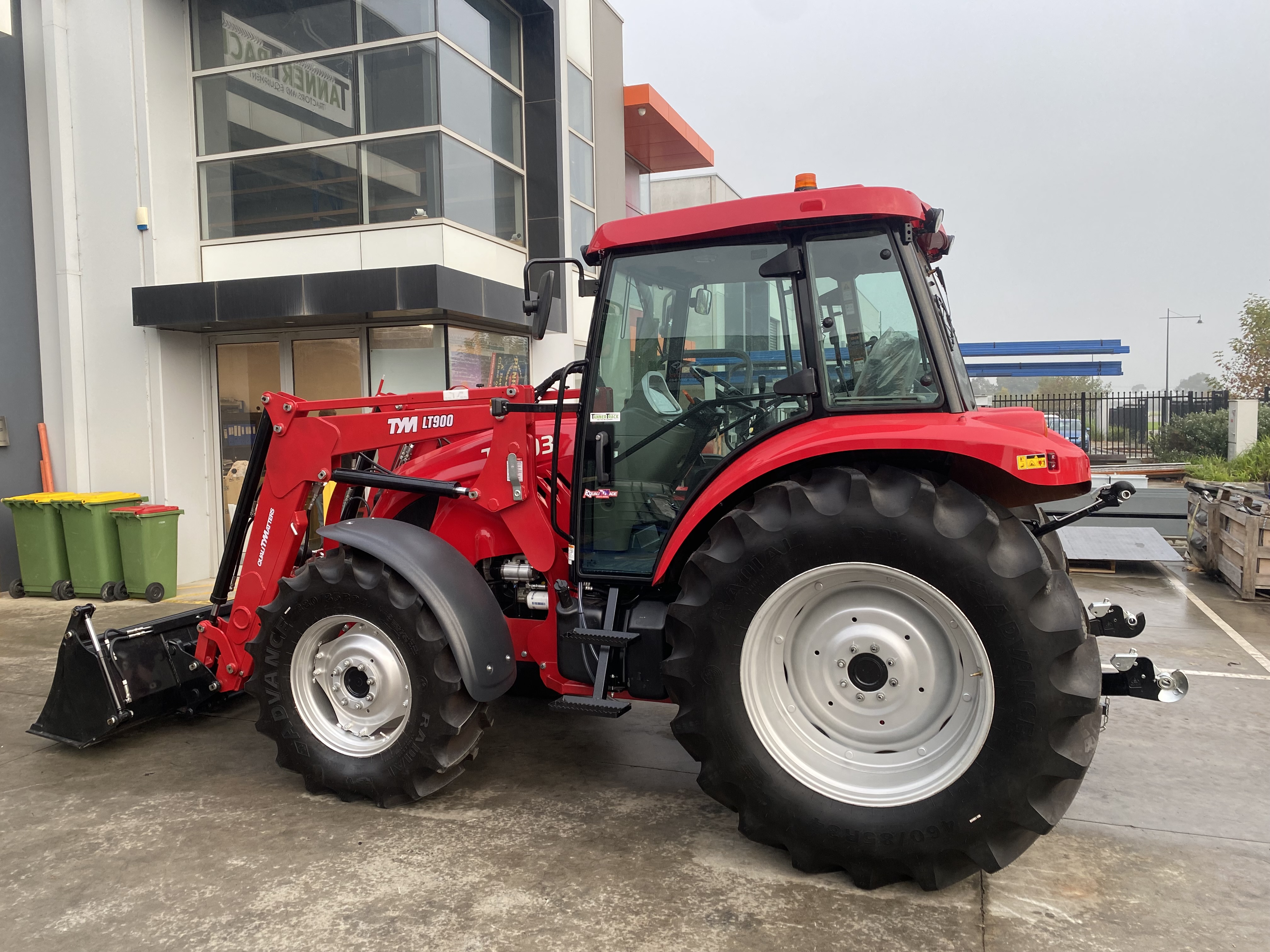

Level lift front-end loader ideal for materials handling and utility work around the farm
Euro hitch with quick release

‍
